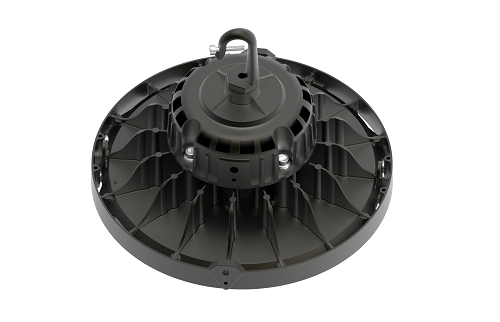

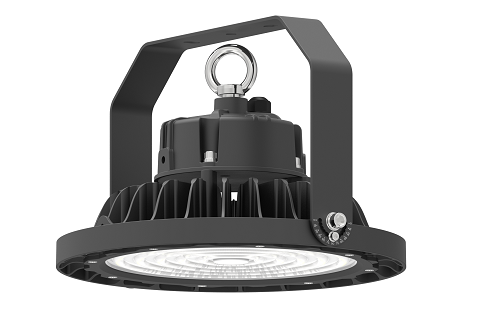

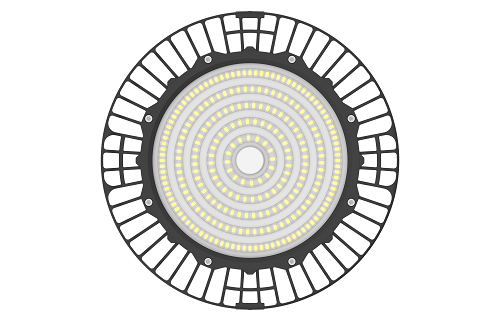

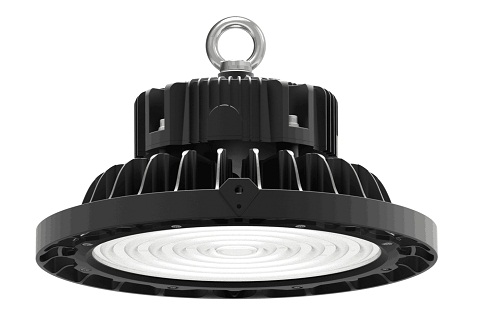

I WANT Series | LED Highbay 80W
Model Number : HBL-80W
•Exceptional high quality lighting with maximum performance
•Patent water wave optics lens of transmission rate 95%
gives most accurate light output
•Corrosion resistant with 168hrs of salt spray testing
•Iconic design for architectural appeal
•Dali dimmers and motion sensors are optional
show more
Technical Data
| Power | 80 W |
|---|---|
| Input Voltage | 90-305 VAC |
| PF | >0.90@220 VAC |
| Dimming (Optional) | 3 in 1 dimming (PWM, 0-10V, Resistor) / Dali |
| CCT | 3000K / 4000K / 5000K / 5700K |
| System Efficiency | 145lmw / 190 lmw |
| Beam Angle | 60D / 90D / 120D |
| Operation Temp. | -40℃ ~ +45℃ |
| Storage Temp. | -40℃ ~ +85℃ |
| IP Class | IP65 |
| IK Class | IK10 |
| Product Size | 261*261*188mm |
| Packing Size | 325*325*230mm |
| Gross weight | 3.7 KG |
| Installation mode | Hook /Pendant /Bracket Mount |
