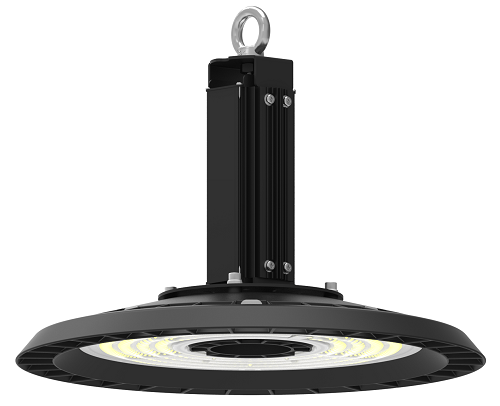

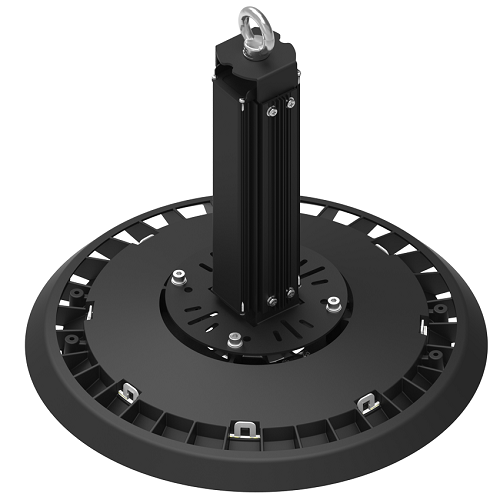

I NEED Series | LED Highbay 100W
Model Number : SHBL-100W
•Top class thermal performance withstanding harsh temperature
•Dust-free new housing gives out heat faster and improves heat-dissipation
•Air breather to balance temperature difference and prevent water condensation
•IES standard 90/120 degrees tested in national listed lab, ensures light accuracy
show more
Technical Data
| Power | 100 W |
|---|---|
| Input Voltage | 198-264 VAC |
| PF | >0.90@220 VAC |
| Dimming (Optional) | 1-10V |
| CCT | 3000K / 4000K / 5000K / 5700K |
| System Efficiency | 160 lmw |
| Beam Angle | 60D / 90D / 120D |
| Operation Temp. | -40℃ ~ +65℃ |
| Storage Temp. | -40℃ ~ +85℃ |
| IP Class | IP65 |
| IK Class | IK08 |
| Product Size | 345*345*308 mm |
| Packing Size | 384*152*390 mm |
| Gross weight | 4.1 KG |
| Installation mode | Hook /Pendant /Bracket Mount |
