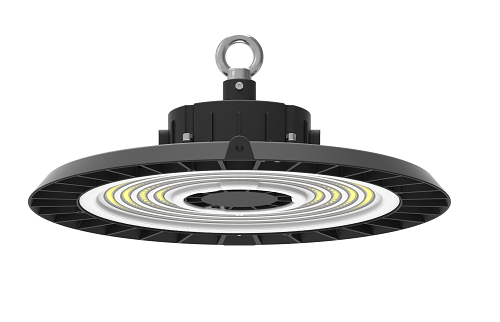

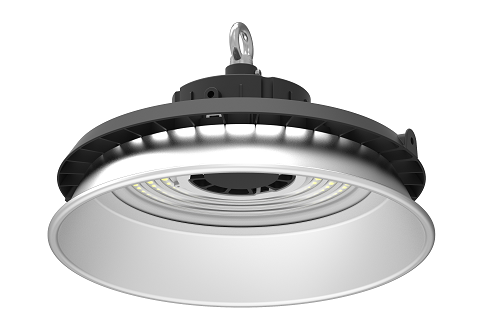

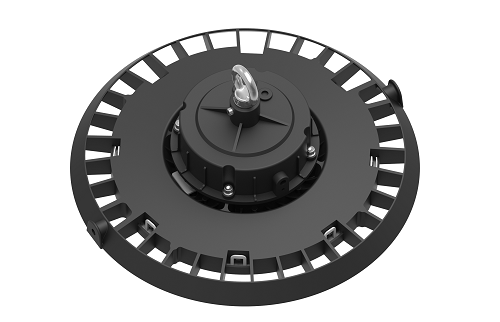

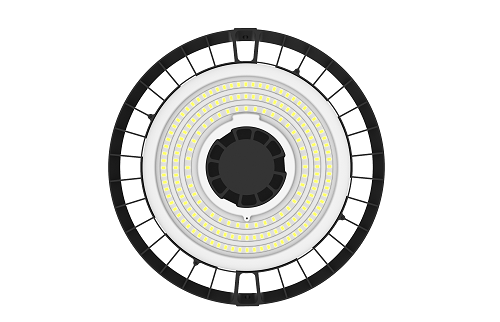

I NEED Series | LED Highbay 200W
Model Number : AHBL-200W
- Unique design with private tooling, fashion and modern
- Latest optics lens clip onto the structure, 0 screw in front
- Patent water wave optics lens of transmission rate 95%,most accurate light output
- Dust-free new housing gives out heat much faster and improves heat-disspation system
show more
Technical Data
| Power | 200 W |
|---|---|
| Input Voltage | 90-305 VAC |
| PF | >0.90@220 VAC |
| Dimming (Optional) | 3 in 1 dimming (PWM, 0-10V, Resistor) /Dali |
| CCT | 3000K / 4000K / 5000K / 5700K |
| System Efficiency | 130lmw / 160 lmw |
| Beam Angle | 60D / 90D / 120D |
| Operation Temp. | -40℃ ~ +45℃ |
| Storage Temp. | -40℃ ~ +85℃ |
| IP Class | IP65 |
| IK Class | IK08 |
Product Size | 385*385*156mm |
Packing Size | 424*150*430mm |
Gross weight | 4.47KG |
Installation mode | Hook /Pendant /Bracket Mount |
