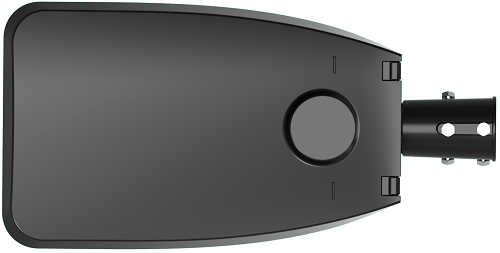

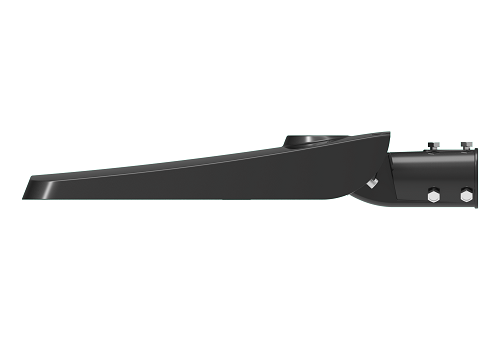

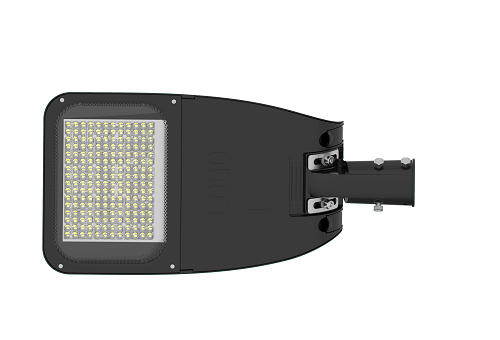

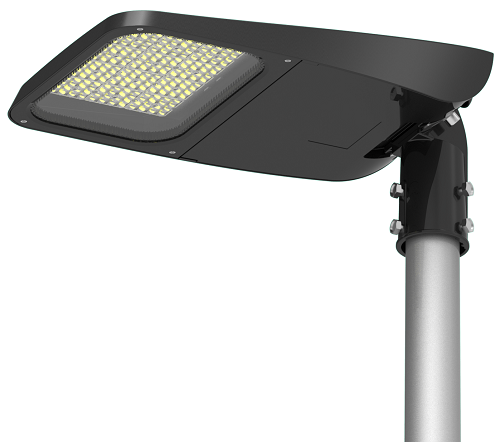

MY CITY Series | LED Streetlight 90W
Model Number : STL-90W
• Self-cleaning design to prevent accumulation of dirt
• The product has a power cut-off protector, which automatically cuts off the power
when opening the housing
• Equipped with large displacement breathing valve, so to balancethe pressure inside and
outside of luminary
• The 10KV/20KV surge protector is optional to provide protection for the power supply
• Nb-IoT and Photocell are available to meet the needs of smart cities
show more
Technical Data
| Power | 90 W |
|---|---|
| Input Voltage | 198-264 VAC |
| PF | >0.95 |
| Dimming (Optional) | ON/OFF、DALI(75-150W）、0-10V |
| CCT | 3000K / 4000K / 5000K / 5700K |
| System Efficiency | 140 lmw |
| Beam Angle | ME1~ME5 |
| Operation Temp. | -40℃ ~ +50℃ |
| Storage Temp. | -40℃ ~ +85℃ |
| IP Class | IP66 |
| IK Class | IK08 |
| Product Size | 624*313*106 mm |
| Packing Size | 700*390*190 mm |
| Gross weight | 7.2KG |
| Control mode | Photo cell, Zigbee ,NB-loT |
