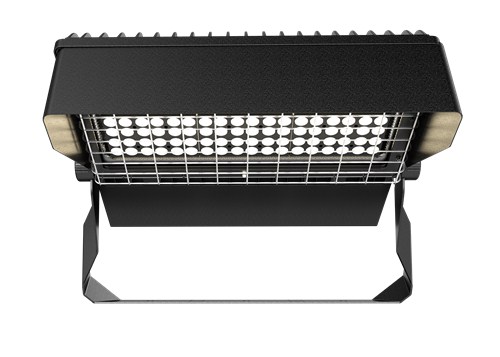

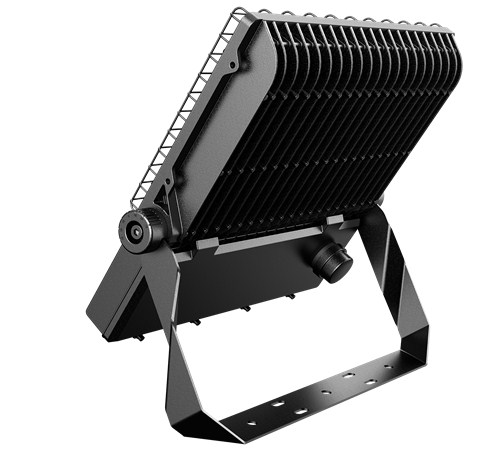

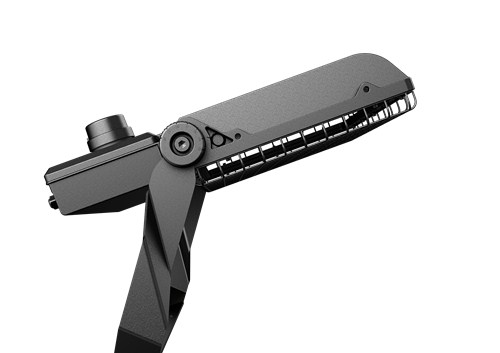

MY AREA Series | LED Light 500W
Model Number : AREA-500W

•Various optical designs to fit different applications

•Anti-glare from light source to overall lamp specially for sports area

•Meets 3G vibration standards and vibration frequency of 100,000 times

•Special pcb design, temperature monitoring and hollow out design ensure
high and efficient heat dissipation

•High salt spray resistance and anti-ultraviolet procession meet the needs
of special places such as seaside, dock, iron tower, stadium and high pole



    • etl
    • ce
    • ctick
    • rohs
    • cb
    • ip66
    • ik08

Technical Data

Power500 W
Input Voltage90-305 VAC
PF>0.90@220 VAC
Dimming (Optional)3 in 1 dimming (PWM, 0-10V, Resistor) / Dali
CCT3000K / 4000K / 5000K / 5700K
System Efficiency100-150lmw
Beam Angle10°,15°,24°,36°, ANB, AWB
Operation Temp.-40℃ ~ +45℃
Storage Temp.-40℃ ~ +85℃
IP ClassIP66
IK ClassIK08
Product Size690*708*94mm
Packing Size800*800*150mm
Gross weight 25.6 KG
Installation modeBracket Mount

Downloads

  • Specification
