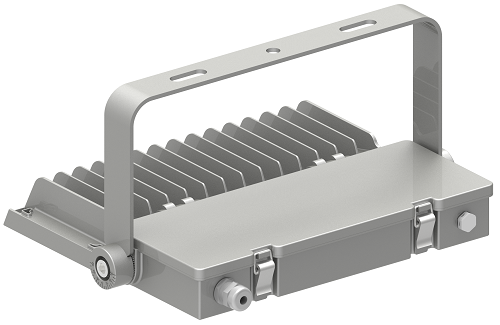

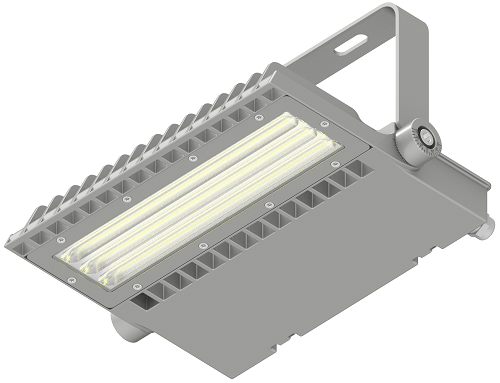

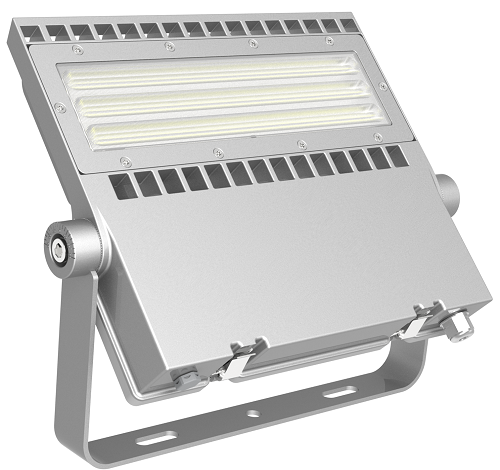

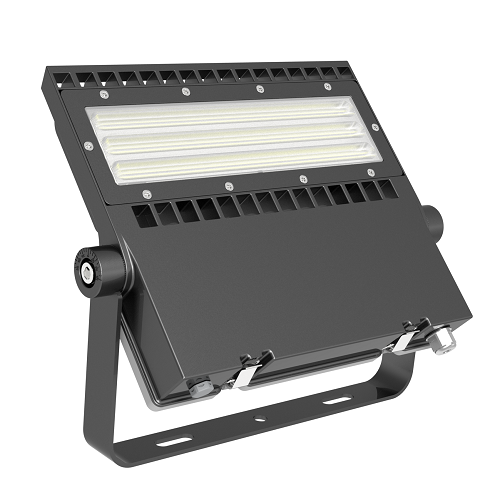

MY AREA Series | LED Light 150W
Model Number : AREA-150W
•Unique three-dimension strip lens, regulates beam angle and avoids
lighting waste
•The one-piece hollowed-out module design, increases air ventilation
and heat dissipation
•Toggle clips for driver box, convinient for maintainance
•Gear rotary bracket supports 5 degrees adjustment
•Convinient driver cable conneting system supports additional smart
controlling modules
show more
Technical Data
| Power | 150 W |
|---|---|
| Input Voltage | 90-305 VAC |
| PF | >0.90@220 VAC |
| Dimming (Optional) | 3 in 1 dimming (PWM, 0-10V, Resistor) / Dali |
| CCT | 3000K / 4000K / 5000K / 5700K |
| System Efficiency | 135lmw |
| Beam Angle | Asymmetric / Symmetric light |
| Operation Temp. | -40℃ ~ +45℃ |
| Storage Temp. | -40℃ ~ +85℃ |
| IP Class | IP66 |
| IK Class | IK10 |
| Product Size | 331*374*50mm |
| Packing Size | 430*370*76mm |
| Gross weight | 5 KG |
| Installation mode | Bracket Mount |
