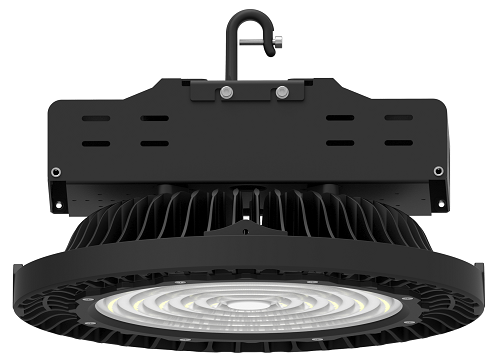

I WANT Series | LED Highbay 100W
Model Number : HBL-100W-MWV
•Exceptional high quality lighting with maximum performance
•Patent water wave optics lens of transmission rate 95%
gives most accurate light output
•Corrosion resistant with 168hrs of salt spray testing
•Iconic design for architectural appeal
•Dali dimmers and motion sensors are optional
show more
Technical Data
| Power | 100 W |
|---|---|
| Input Voltage | 200-480 VAC |
| PF | >0.90 |
| Dimming (Optional) | PMW, 1-10V |
| CCT | 3000K / 4000K / 5000K / 5700K |
| System Efficiency | 160 lmw |
| Beam Angle | 60D / 90D / 120D |
| Operation Temp. | -40℃ ~ +45℃ |
| Storage Temp. | -40℃ ~ +85℃ |
| IP Class | IP65 |
| IK Class | IK10 |
| Product Size | 300*300*211 mm |
| Packing Size | 370*370*245 mm |
| Gross weight | 6.2 KG |

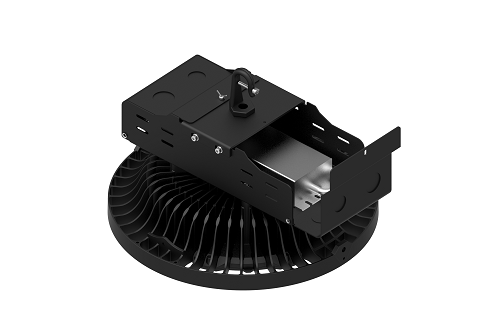

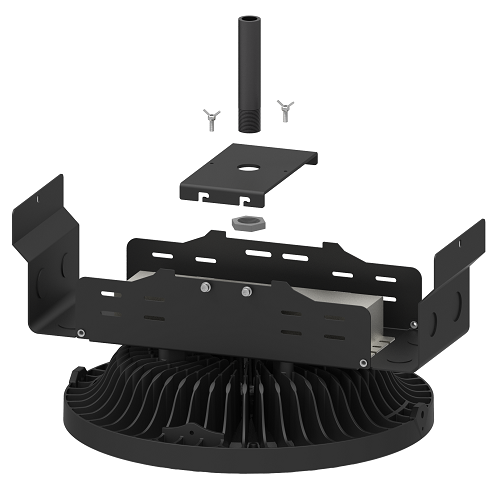

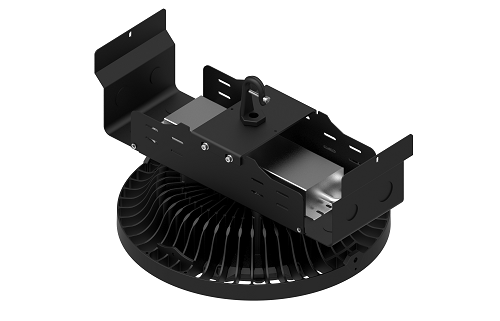

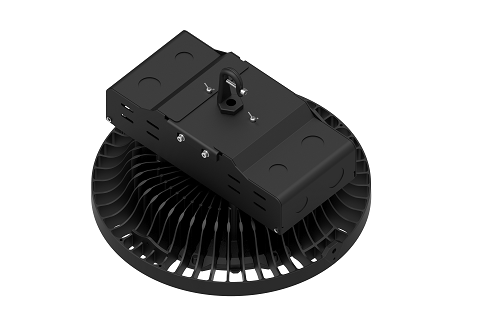

| Installation mode | Hook/Pole/Bracket Mount |
