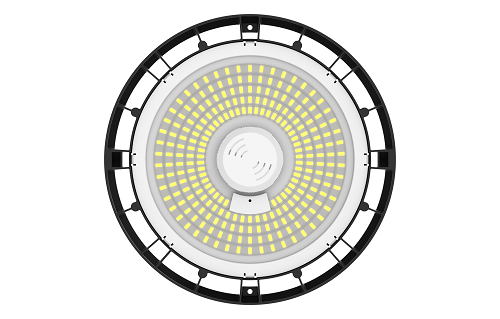

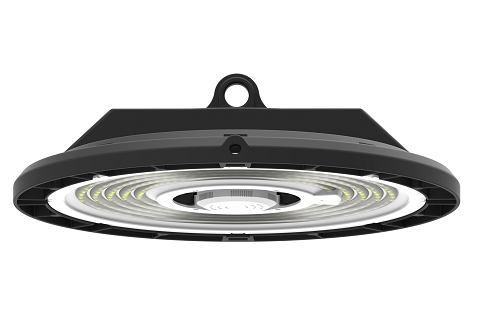

I NEED Series | LED Highbay 100W
Model Number : FHBL-100W
•Newly design with motion sensor or driver changeable
•Answer to IOT tendency, saving energy intelligently
•Latest optics lens clip onto the structure, 0 screw in face
•Patent water wave optics lens of transmission rate 95%
•Dust-free new housing gives out heat much faster and improves
heat-disspation system
show more
Technical Data
| Power | 100 W |
|---|---|
| Input Voltage | 90-305 VAC |
| PF | >0.90@220 VAC |
| Dimming (Optional) | PWM, 0-10V, Resistor, Microwave sensor |
| CCT | 3000K / 4000K / 5000K / 5700K |
| System Efficiency | 145lmw / 175lmw /190 lmw |
| Beam Angle | 90D / 120D |
| Operation Temp. | -40℃ ~ +45℃ |
| Storage Temp. | -40℃ ~ +85℃ |
| IP Class | IP65 |
| IK Class | IK10 |
| Product Size | 262*262*104mm |
| Packing Size | 324*145*340mm |
| Gross weight | 3.43 KG |
| Installation mode | Hook /Pendant /Bracket Mount |
