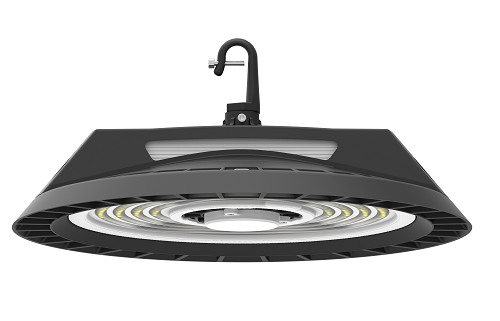

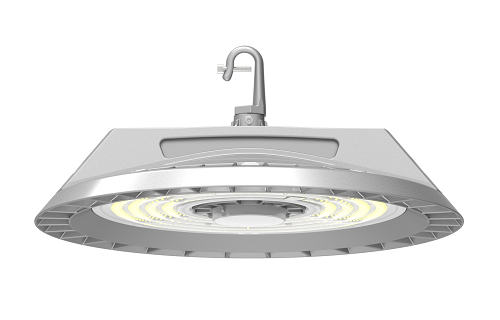

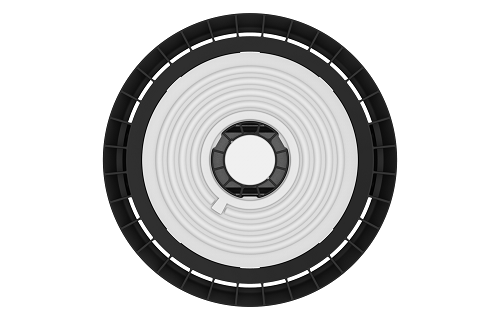

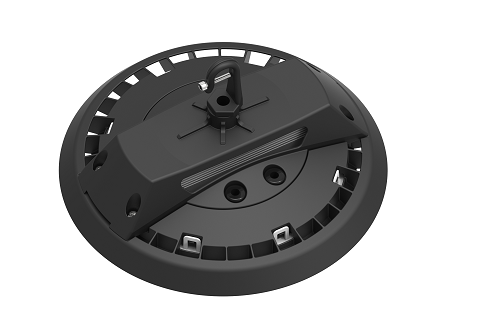

I NEED Series | LED Highbay 200W
Model Number : EHBL-200W
•Newly design with motion sensor integrated in the middle of luminaire
simplify the cable displaying and reduce overall cost
•Answer to IOT tendency, saving energy intelligently
•Latest optics lens clip onto the structure, 0 screw in face
•Patent water wave optics lens of transmission rate 95%
•Dust-free new housing gives out heat much faster and improves
heat-disspation system
show more
Technical Data
| Power | 200 W |
|---|---|
| Input Voltage | 90-305 VAC |
| PF | >0.90@220 VAC |
| Dimming (Optional) | PWM, 0-10V, Resistor, Dali |
| CCT | 3000K / 4000K / 5000K / 5700K |
| System Efficiency | 145lmw / 190 lmw |
| Beam Angle | 60D / 90D / 120D |
| Operation Temp. | -40℃ ~ +45℃ |
| Storage Temp. | -40℃ ~ +85℃ |
| IP Class | IP65 |
| IK Class | IK10 |
| Product Size | 382*382*160mm |
| Packing Size | 424*150*430mm |
| Gross weight | 4.9 KG |
| Installation mode | Hook /Pendant /Bracket Mount |
