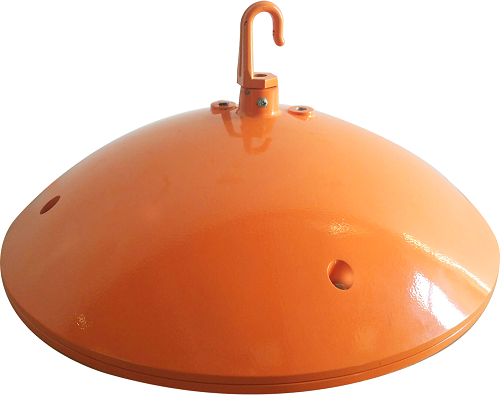

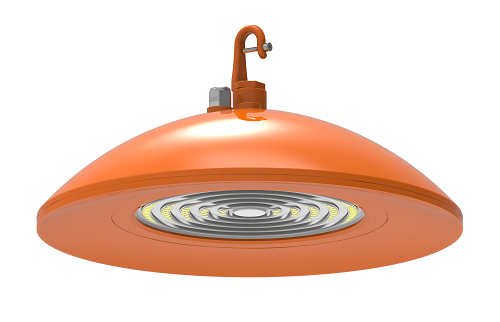

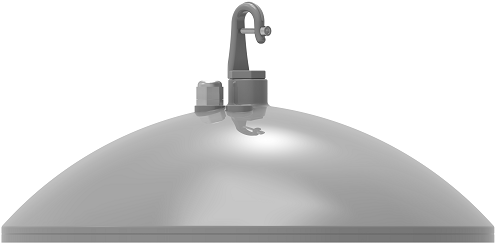

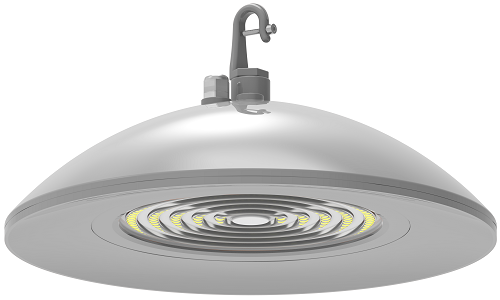

I LOVE Series | LED Highbay 100W
Model Number : CHBL-100W
•Specially designed for food & beverage processing factories
•One-piece design for easy cleanning reduces contamination risks
•Surface electrostatic spray-paint processing, ensures food safety
•IP69K IP67 extremely durable for daily direct jets of 1450 Psi
water or high temperature steam
•Luminous efficacy up to 165lm/w, power factor >0.95, largely
saves your energy.
show more
Technical Data
| Power | 100 W |
|---|---|
| Input Voltage | 90-305 VAC |
| PF | >0.90@220 VAC |
| Dimming (Optional) | 2 in 1 dimming (PWM, 0-10V) |
| CCT | 3000K / 4000K / 5000K / 5700K |
| System Efficiency | 145lmw / 165 lmw |
| Beam Angle | 60D / 90D / 120D |
| Operation Temp. | -40℃ ~ +45℃ |
| Storage Temp. | -40℃ ~ +85℃ |
| IP Class | IP69K |
| IK Class | IK10 |
| Product Size | 400*400*197mm |
| Packing Size | 470*470*210mm |
| Gross weight | 6.8 KG |
| Installation mode | Hook /Pendant /Bracket Mount |
